Model

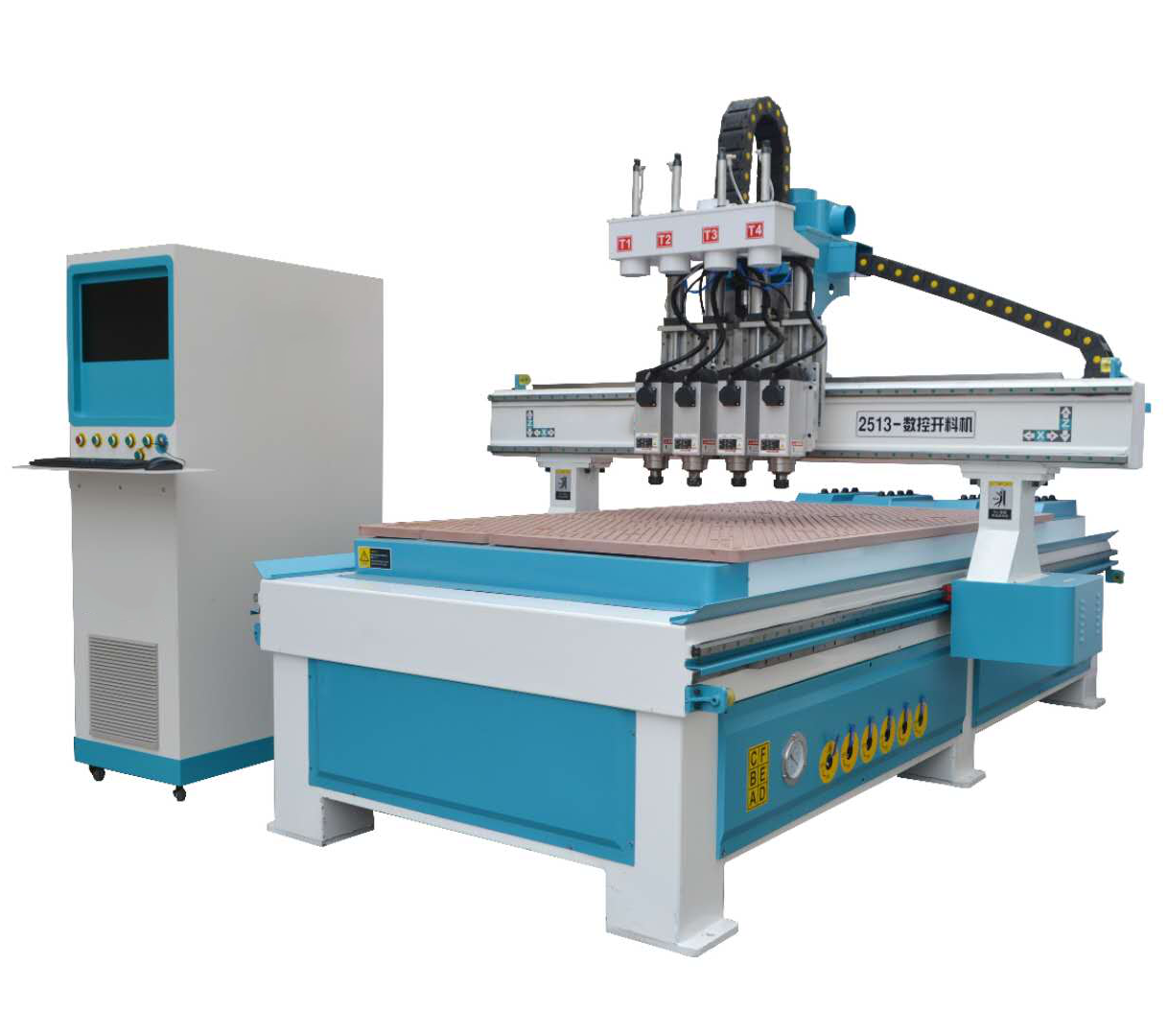

LT-1325 4 Spindle Pneumatic Wood CNC Router

Working area

1300(X)*2500(Y)mm

Max Feeding height

200mm

Machine structure

Thick welded steel tube, cast iron vertical shafts and steel gantry

Table surface

Vacuum table with vacuum pump

Spindle

3.5*3KW+6.0KW

Spindle rotating speed

0-18000rpm

Collect size

ER32

Guide rail

Hiwin linear square guide rail 25mm

Driving method

X,Y axis by helicia gear rack, Z axis by pneumatic

Motors and drivers

Leadshine H2-2206 Hybrid servo driver

Control system

NCstudio 60A controller

Invert

Fuling invert

Max. idling speed

25m/min

Max. working speed

12m/min

Working Accuracy

<0.05/300mm

Instruction formate

G code *.u00 *.mmg *.plt

Working voltage

AC220V/380V, 3 phase

Compatible software

Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software

Control Cabinet

Independent

Other

Tool Sensor; Oiling system; Water pump; Tool Box etc.

Dust Collector;
